Percobaan 1 7 segment

[KEMBALI KE MENU SEBELUMNYA]

DAFTAR ISI

1.kondisi

2.Gambar Rangkaian

3.flowchart

4.Koding Program

5. Download Video

6. Prinsip Kerja

izi

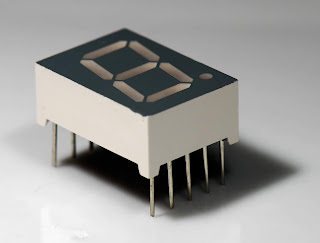

1.Hardware

2.Rangkaian simulasi

3.Flowchart

4.Koding Program
byte pin[]={6,7,8,9,10,11,12};

void setup() {
  // put your setup code here, to run once:
for(int i=0;i<9;i++)
{
  pinMode(pin[i],OUTPUT);
}
}
void loop() {
  // put your main code here, to run repeatedly:
  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,LOW);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
    delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,HIGH);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
    delay(1000);


  digitalWrite(6,LOW);
  digitalWrite(7,LOW);
  digitalWrite(8,LOW);
  digitalWrite(9,LOW);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
    delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,HIGH);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,LOW);
  digitalWrite(12,HIGH);
    delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,LOW);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,LOW);
  digitalWrite(12,HIGH);
    delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,HIGH);
  digitalWrite(8,LOW);
  digitalWrite(9,LOW);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,LOW);
    delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,LOW);
  digitalWrite(8,LOW);
  digitalWrite(9,HIGH);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
  delay(1000);

  digitalWrite(6,HIGH);
  digitalWrite(7,LOW);
  digitalWrite(8,HIGH);
  digitalWrite(9,HIGH);
  digitalWrite(10,LOW);
  digitalWrite(11,HIGH);
  digitalWrite(12,HIGH);
  delay(1000);

  digitalWrite(6,LOW);
  digitalWrite(7,LOW);
  digitalWrite(8,LOW);
  digitalWrite(9,LOW);
  digitalWrite(10,HIGH);
  digitalWrite(11,HIGH);
  digitalWrite(12,LOW);
    delay(1000);


}

5.Video Praktikum
